Connectez et gérez jusqu'à sept périphériques USB de type A à l'aide de ce concentrateur USB conçu pour les environnements industriels/commerciaux

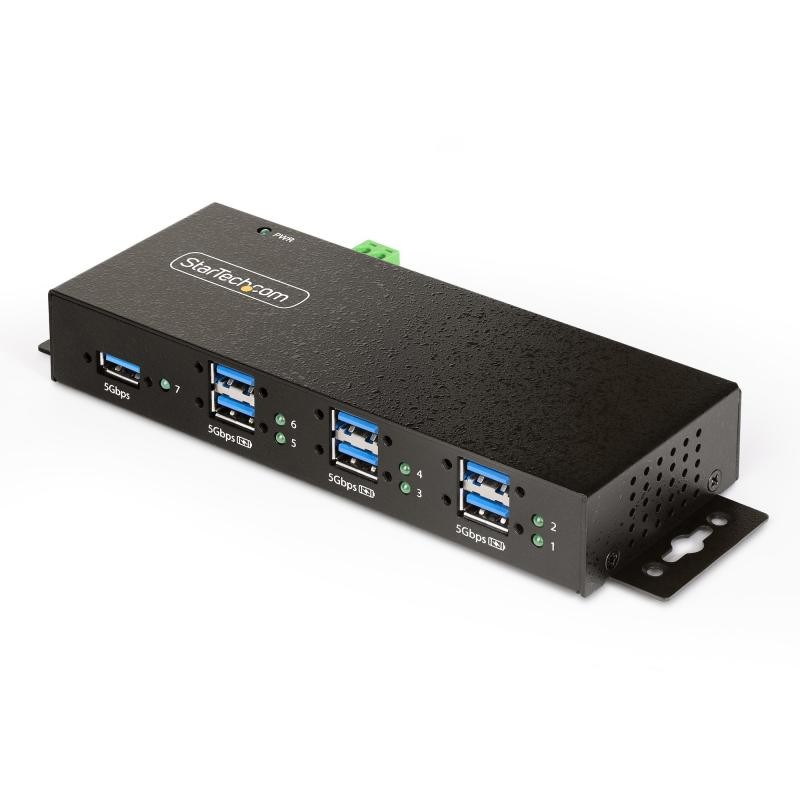

This 7-port Managed Industrial USB 5Gbps Hub enables users to toggle individual USB ports on/off and to reboot the hub, using the USB Hub Administrator Software (free to download). With robust housing and versatile power input options, the USB Hub is designed to cater to the needs of IT Professionals working in industrial settings such as factories, warehouses, offices, and other similar environments.
Managed USB Hub

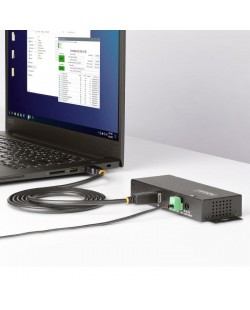

The USB Hub Administrator Software is to be installed on the host computer, enabling users to remotely control device access and manage operational features. With this software, users can:
• Enable or disable individual or all ports on the USB Hub.
• Reboot the USB Hub.
• Set a password to restrict unauthorized access.
• Save port states for quick setup in specific applications.
• Utilize Command Line Interface (CLI) commands for command-line operation or custom application development.
The software is compatible with Windows, macOS, and Linux, making it versatile across different platforms. It supports an unlimited number of Managed USB Hubs, allowing users to connect multiple Hubs to a single host computer or cascade them in sequence.
Rugged and Reliable
The Industrial USB Hub features a rugged heavy-duty metal enclosure designed to shield the hub from potential damage caused by accidental drops or sudden impacts. Moreover, it protects against Electrostatic Discharge (ESD) with 15kV air and 8kV contact Level-4 ESD protection. This robust construction ensures resiliency in demanding industrial environments, providing peace of mind for users in situations where durability and reliability are paramount.
Power Flexibility
The USB Hub offers power flexibility to cater to diverse user needs. It supports a wide voltage range from +7 to 24 volts DC, ensuring compatibility with various power sources. With two DC inputs, featuring both a terminal block and a concentric barrel connector, users can choose to power the USB Hub using either input or both simultaneously for redundancy. The USB Hub supports USB battery charging specification 1.2, delivering up to 1.5A (7.5W) on 6 of the downstream ports, so you can power and quickly charge external devices.
StarTech.com offers an external power adapter (Part Number: ITB20D3250, sold separately) that will enable the USB Hub to operate at maximum performance.
Mounting Options

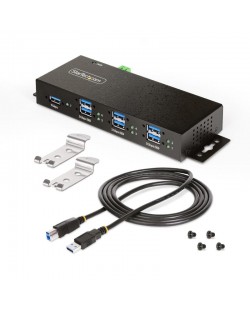

The USB Hub is thoughtfully designed for user convenience and adaptability. Equipped with built-in mounting brackets, installation is simplified. The hub may be mounted to a variety of surfaces such as walls or desks. The DIN rail bracket ensures secure mounting in industrial environments.
High-Performance
The rugged USB Hub supports SuperSpeed USB 5Gbps and maintains backward compatibility with legacy peripheral devices. Additionally, the USB Hub offers enhanced security through the USB Event Monitor utility, a feature within the StarTech.com Connectivity Tools application. This utility logs and timestamps USB port usage, empowering IT administrators to identify potentially malicious devices. For more details and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
This 7-port Managed Industrial USB 5Gbps Hub enables users to toggle individual USB ports on/off and to reboot the hub, using the USB Hub Administrator Software (free to download). With robust housing and versatile power input options, the USB Hub is designed to cater to the needs of IT Professionals working in industrial settings such as factories, warehouses, offices, and other similar environments.
Managed USB Hub
The USB Hub Administrator Software is to be installed on the host computer, enabling users to remotely control device access and manage operational features. With this software, users can:
• Enable or disable individual or all ports on the USB Hub.
• Reboot the USB Hub.
• Set a password to restrict unauthorized access.
• Save port states for quick setup in specific applications.
• Utilize Command Line Interface (CLI) commands for command-line operation or custom application development.
The software is compatible with Windows, macOS, and Linux, making it versatile across different platforms. It supports an unlimited number of Managed USB Hubs, allowing users to connect multiple Hubs to a single host computer or cascade them in sequence.
Rugged and Reliable
The Industrial USB Hub features a rugged heavy-duty metal enclosure designed to shield the hub from potential damage caused by accidental drops or sudden impacts. Moreover, it protects against Electrostatic Discharge (ESD) with 15kV air and 8kV contact Level-4 ESD protection. This robust construction ensures resiliency in demanding industrial environments, providing peace of mind for users in situations where durability and reliability are paramount.
Power Flexibility
The USB Hub offers power flexibility to cater to diverse user needs. It supports a wide voltage range from +7 to 24 volts DC, ensuring compatibility with various power sources. With two DC inputs, featuring both a terminal block and a concentric barrel connector, users can choose to power the USB Hub using either input or both simultaneously for redundancy. The USB Hub supports USB battery charging specification 1.2, delivering up to 1.5A (7.5W) on 6 of the downstream ports, so you can power and quickly charge external devices.
StarTech.com offers an external power adapter (Part Number: ITB20D3250, sold separately) that will enable the USB Hub to operate at maximum performance.
Mounting Options
The USB Hub is thoughtfully designed for user convenience and adaptability. Equipped with built-in mounting brackets, installation is simplified. The hub may be mounted to a variety of surfaces such as walls or desks. The DIN rail bracket ensures secure mounting in industrial environments.
High-Performance
The rugged USB Hub supports SuperSpeed USB 5Gbps and maintains backward compatibility with legacy peripheral devices. Additionally, the USB Hub offers enhanced security through the USB Event Monitor utility, a feature within the StarTech.com Connectivity Tools application. This utility logs and timestamps USB port usage, empowering IT administrators to identify potentially malicious devices. For more details and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
| Connectivité | |
|---|---|
| Interface de l'hôte | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Interfaces Hub | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Quantité de ports de type A USB 3.2 Gen 1 (3.1 Gen 1) | 7 |
| Quantité de ports | 7 |
| Port sur le bornier | Oui |
| Caractéristiques | |
| Taux de transfert de données | 5000 Mbit/s |
| Couleur du produit | Noir |
| Matériau du boîtier/corps | Métal |
| Voyants | Énergie, Statut |
| Plug and Play | Oui |
| Poids et dimensions | |
| Largeur | 114 mm |
| Profondeur | 67 mm |
| Hauteur | 26 mm |
| Poids | 200 g |
| Informations sur l'emballage | |
| Largeur du colis | 148 mm |
| Profondeur du colis | 218 mm |
| Hauteur du colis | 50 mm |
| Poids du paquet | 500 g |
| Contenu de l'emballage | |
| Câbles inclus | USB Type-A vers USB Type-B |
| Kit de rail DIN inclus | Oui |
| Guide de démarrage rapide | Oui |
| Conditions environnementales | |
| Température d'opération | 0 - 60 °C |
| Température hors fonctionnement | -20 - 75 °C |
| Humidité relative de fonctionnement (H-H) | 5 - 95% |
| représentation / réalisation | |
| Temps moyen entre pannes | 131406 h |
| Durabilité | |
| Conformité à la durabilité | Oui |
| Données logistiques | |
| Largeur du casier principal (externe) | 430 mm |
| Longueur du casier principal (externe) | 525 mm |
| Hauteur du casier principal (externe) | 265 mm |
| Produit par casier principal (externe) | 25 pièce(s) |
| Détails techniques | |
| Certificats de conformité | CE, RoHS, Loi sur les accords commerciaux (TAA) |
| Autres caractéristiques | |
| Jeu de composants | VIA - VL817-Q7 C0 |
CJ12996
5G7AINDRM-USB-A-HUB
Fiche technique
- Couleur du produit
- Noir
- Température d'opération
- 0 - 60 °C
- Humidité relative de fonctionnement (H-H)
- 5 - 95%
- Largeur
- 114 mm
- Profondeur
- 67 mm
- Hauteur
- 26 mm
- Poids
- 200 g
- Température hors fonctionnement
- -20 - 75 °C
- Largeur du colis
- 148 mm
- Profondeur du colis
- 218 mm
- Hauteur du colis
- 50 mm
- Poids du paquet
- 500 g
- Produit par casier principal (externe)
- 25 pièce(s)
- Conformité à la durabilité
- Oui
- Certificats de conformité
- CE, RoHS, Loi sur les accords commerciaux (TAA)
- Temps moyen entre pannes
- 131406 h
- Largeur du casier principal (externe)
- 430 mm
- Longueur du casier principal (externe)
- 525 mm
- Hauteur du casier principal (externe)
- 265 mm
- Matériau du boîtier/corps
- Métal
- Câbles inclus
- USB Type-A vers USB Type-B
- Voyants
- Énergie, Statut
- Jeu de composants
- VIA - VL817-Q7 C0
- Guide de démarrage rapide
- Oui
- Quantité de ports de type A USB 3.2 Gen 1 (3.1 Gen 1)
- 7
- Interface de l'hôte
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- Interfaces Hub
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Quantité de ports
- 7
- Plug and Play
- Oui
- Taux de transfert de données
- 5000 Mbit/s
- Port sur le bornier
- Oui
- Kit de rail DIN inclus
- Oui
StarTech.com Hub USB 3.0 7 Ports avec 7x USB-A, Boîtier Industriel en Métal, Hub USB 7 ports avec Protection ESD, Montage Mural, sur Table ou sur Rail, USB 3.0/3.1/3.2 Gen 1 5Gbps. Interface de l'hôte: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Interfaces Hub: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Taux de transfert de données: 5000 Mbit/s, Couleur du produit: Noir, Matériau du boîtier/corps: Métal. Largeur: 114 mm, Profondeur: 67 mm, Hauteur: 26 mm. Largeur du colis: 148 mm, Profondeur du colis: 218 mm, Hauteur du colis: 50 mm. Câbles inclus: USB Type-A vers USB Type-B
